AdamK's Touring Bike - Surly Disc Trucker
Surl-E Disc Trucker Updates and Modifications

 If the battery looks a little strange, it's because both photos above show the battery with a waterproof cover.



 The previous pages was regarding the installation and test rides of a Tongsheng TSDZ2 mid-drive pedal assist kit to my Surly Disc Trucker touring bike (now named "Surl-E Disc Trucker"). Since then I've had several opportunities to take the bike out both loaded and unloaded. Unloaded rides were more or less to test the shifting and gearing together with getting used to the pedal assist motor with it's four levels of assist - Eco, Standard, Tour and Turbo, with Eco being the lowest level of assist.

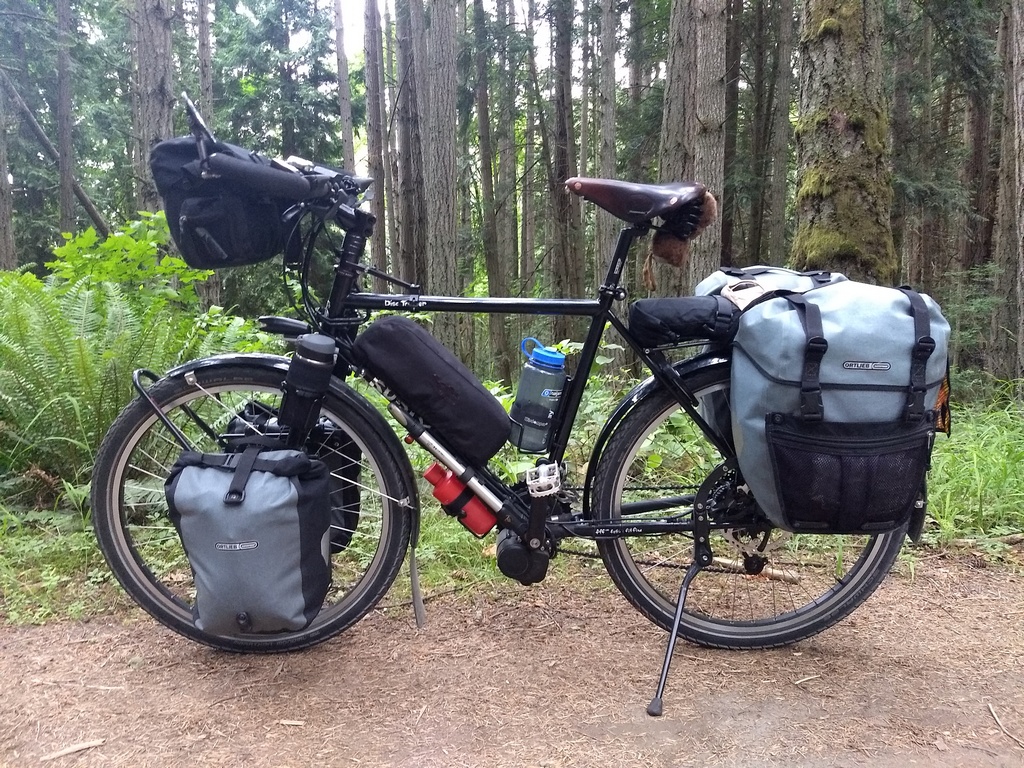

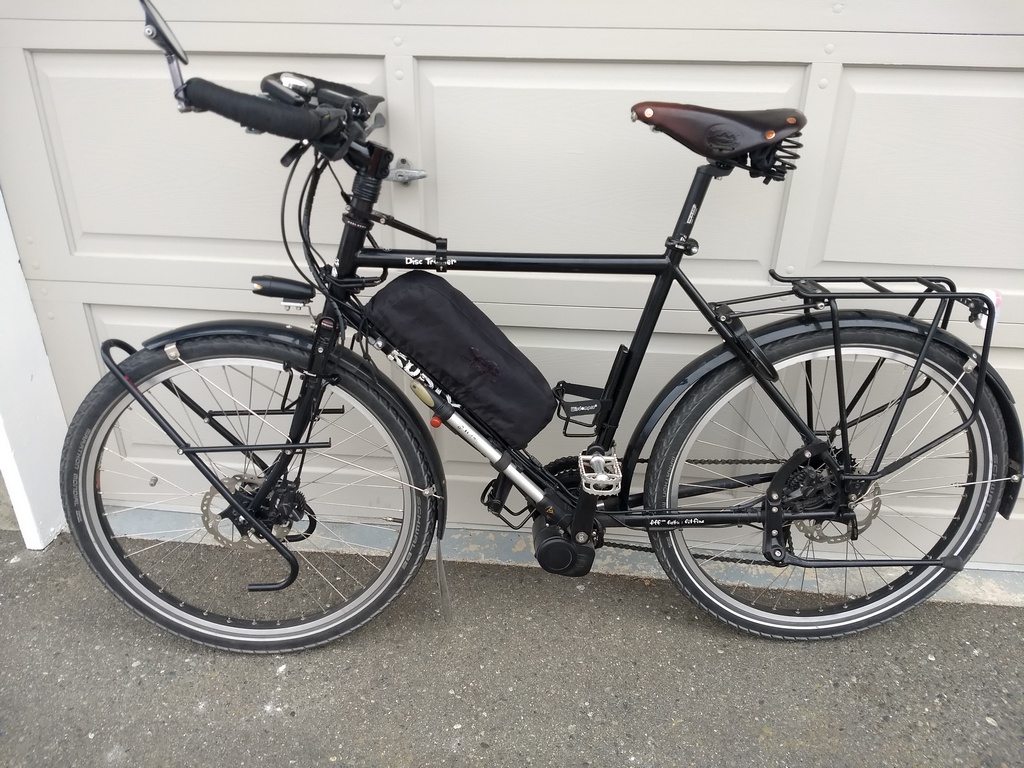

 You can see from the photo above that I've now moved the battery from the rear rack to the down tube. I decided to sacrifice one water bottle mount to achieve this move. The battery wasn't really a problem on the rear rack, but I missed being able to strap longer items, such as tent poles etc., to the top of the rack. Also, weight distribution is now much better when the bike is loaded as in the second photo above.

 The water bottle mounts on the down tube are relatively close together allowing only a couple of screws to hold the heavy battery. And the position of them would not allow an ideal allowance for removal of the battery. In order to keep the water bottle mount on the seat tube, I had to space the battery mounting clamps very precisely so the battery could slide up off its mount and be removed or replaced. I also felt the battery mounting plate really needed a third mounting point to assure that it would be secure over bumpy roads and trails. I searched out some inexpensive clamps on the internet that would fit onto the down tube and allow a more solid fixture for the battery mount.

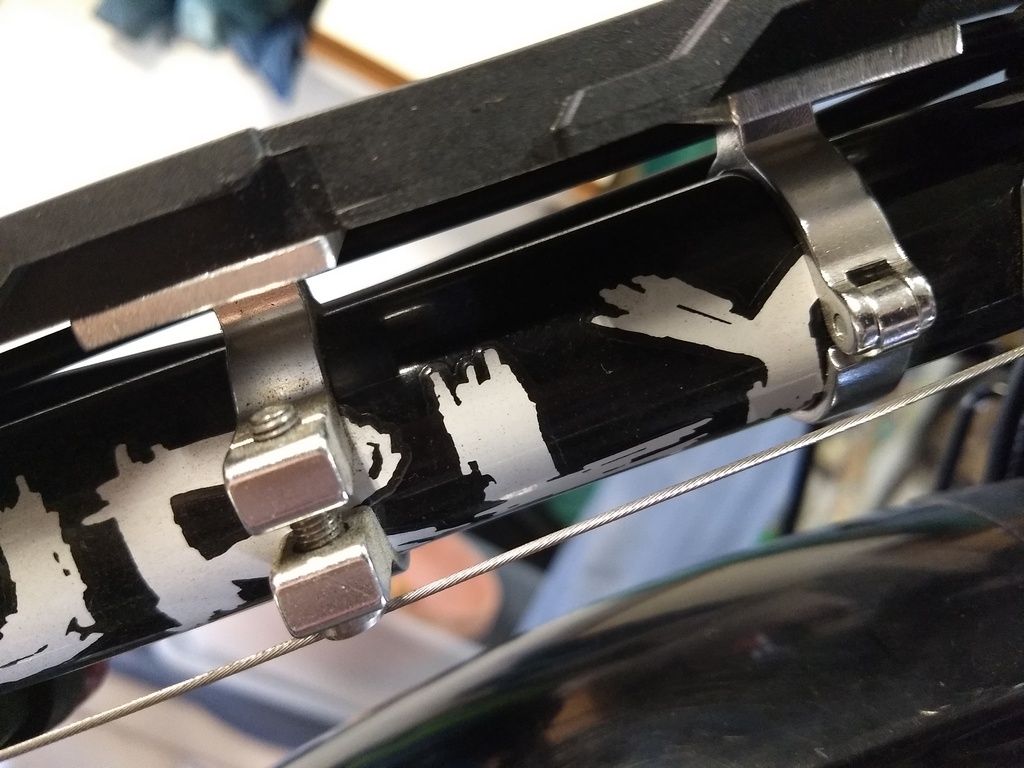

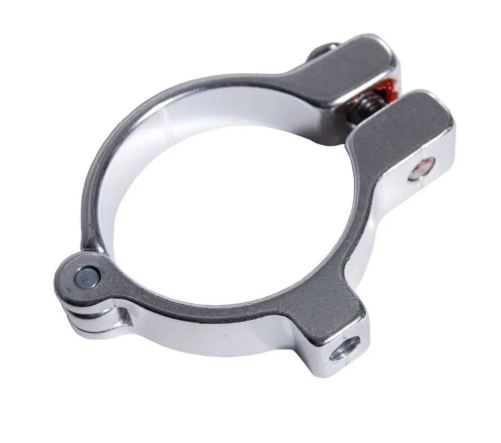

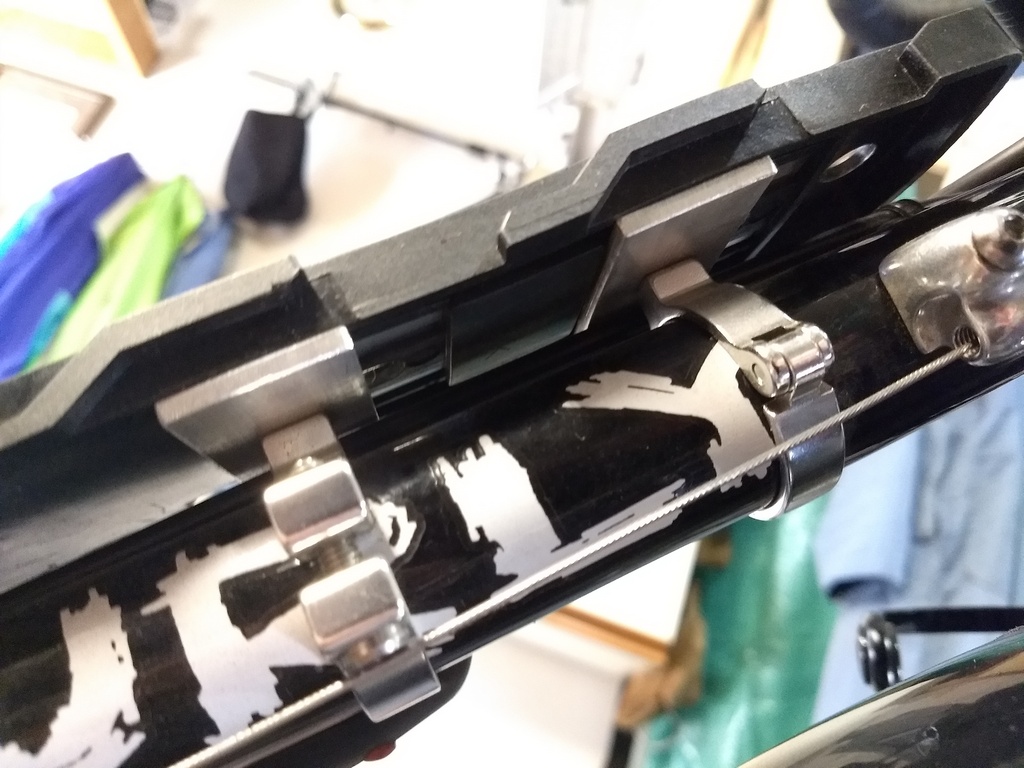

 The photos above show the DMR hinged down tube clamps that I installed, together with some short aluminium plates between the plastic battery mount and DMR clamps to further stiffen the battery mounting plate sideways.
I used three of these clamps to achieve the ideal location for the battery mounting plate. The result is a very solid mount for the battery!

 It's nice to get the top of the rear rack free now for other items that can be located there. I always have a couple of bungie cords there to load any loose items like my windbreaker or rain jacket in "on and off" weather. If you've done any bike touring, in the Pacific Northwest, you'll know what "on and off" weather is!



 The next item I wanted to alter was the gearing. I wasn't too fond of a couple of the original shift spacings on the 11-42 cassette so I bought a new Sunrace 11-40 8-speed cassette with a slightly different spacing. The new cassette's large cog is 40 whereas previously I had a 42 cog. Reasoning was that I discovered that the 34 to 42 low gear that I had was not really necessary as the
e-drive would compensate easily for the slight loss in the lowest gear. I also switched to a slightly narrower tire, from a 47-559 to a 40-559 which also lowers the gearing somewhat, resulting in very little change for the lowest gear. With having two front chainrings, I've found that the chainline when in the 44 front chainring is best when only using the four highest gears of the cassette. When in the 34 front chainring, all speeds of the cassette are smooth and within a reasonable chainline.

 I've done some short bike camping trips fully loaded to the local (hilly) Gulf Islands and for the most part the 34 front chainring is the ideal size for loaded riding; I very rarely shifted up to the 44 chainring which seemed to only be useful on flat stretches of road.

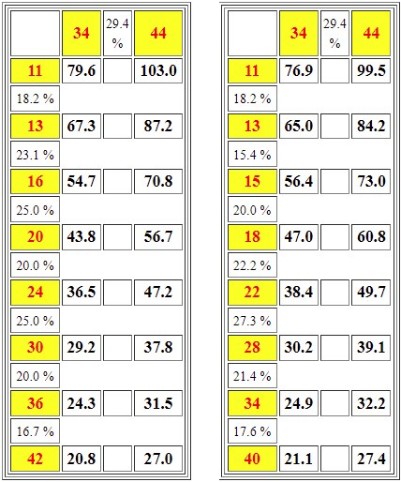

Below are comparison gearing charts showing the two cassettes, click for larger image...

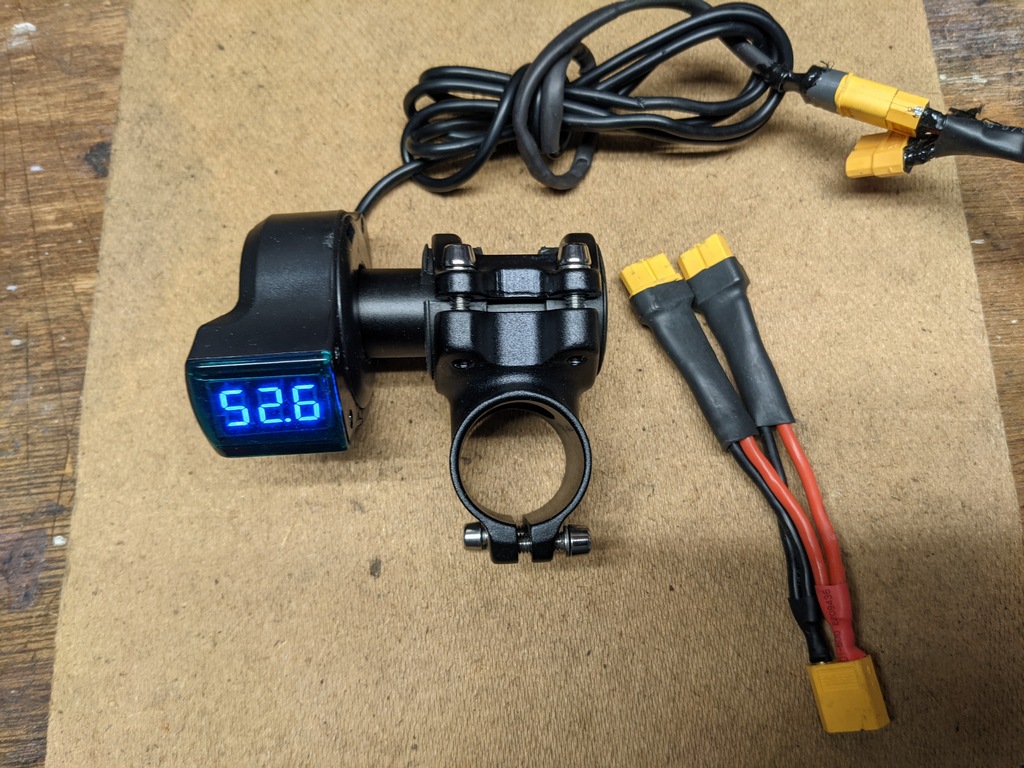

 Another addition/upgrade was to change my display. The TSDZ2 originally came with a VLCD5 display, which I found to be unnecessarily large as mentioned in my original post of installing the e-drive. I changed that to the more compact VLCD6, which size-wise was OK, but did not have a numerical digital battery voltage display just bars same as the VLCD5. I overcame that issue with adding a short second stem under the handlebar stem together with an inexpensive digital voltage display. I made up a pigtail for the battery connection to allow for the connection of the display. The photo below on the left will give you an idea of what I accomplished.

 Even though I now had a voltage display, I was still not pleased with the small buttons on the VLCD6 display. When wearing gloves, it was hard to determine which button I was selecting in addition to the display's readout being a little small for my old eyes! So after a bit more research, I found that it was possible to use a 500C colour display that one or two outlets in China were selling for the Tongsheng TSDZ2. I had already bought the one to two cable in order to use the VLCD6, so the 500C would be plug and play.

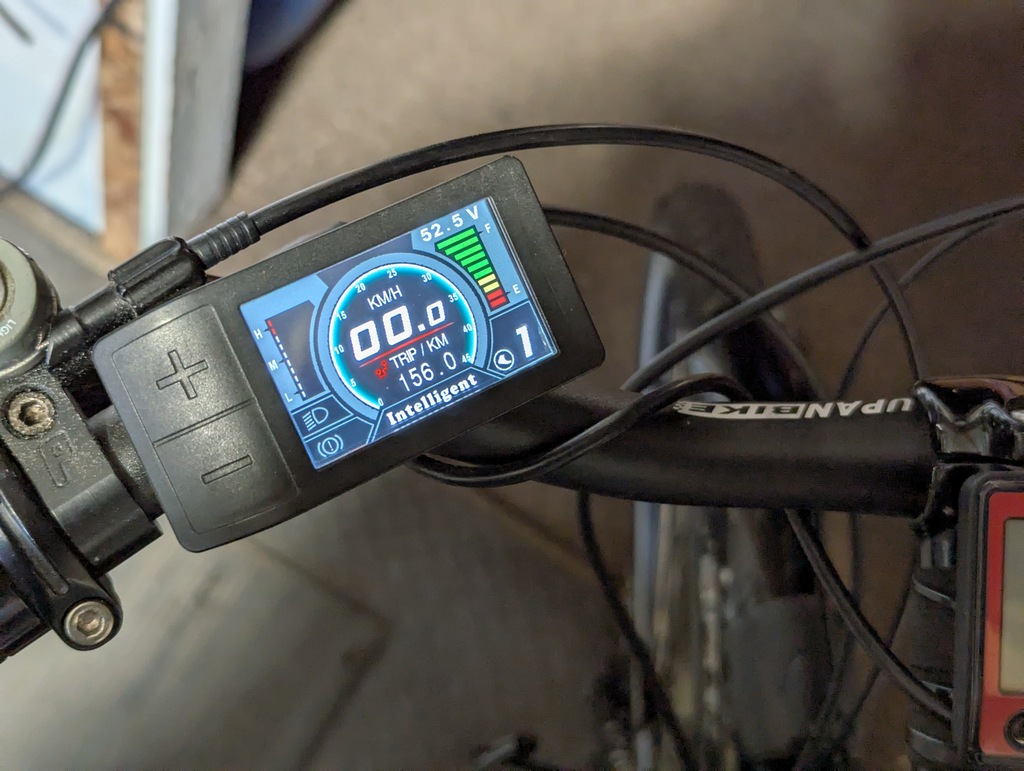

 The photo above on the right, shows the 500C display that I installed. The display has a speedometer style circular readout in addition to the numerical digital speed readout. The big advantages of this display are that the colour screen is easy to see even in sunlight, it has a battery voltage display, has large buttons that are easy to push and is still very compact - a really great upgrade! On the left side of the screen is a watt meter, however that is not functioning, as it would require some open source firmware installing into the controller's circuit board - something that I am not willing to perform at this time.
At a later date, I did actually program new firmware to the controller and am very pleased with the result as the assist levels are more precise and the bike feels even more responsive for a more natural ride. I feel that it compares very favourably to factory built ebikes with Bosch drives. Even with the new firmware, the watt meter is not an available function on the 500C; apparently an 860C is required to have this function... I can live  without a watt meter!



 There has been one other addition to my kit, not really to the bike but more of a battery maintenance issue. In researching Lithium-Ion (Li-ion) batteries, the consensus is that not constantly charging the batteries to full charge will result in better lifespan of the lithium batteries. Also, slower charging is a frequent recommendation. Fully charging the battery every time will allow for approximately 400 charges before the battery's cells begin to degrade. Whereas only charging to 90% or 80% will result in the in a possible lifespan of 1000 or 2000 charges respectively! Click here for more information on this subject. In order to achieve this better form of charging I purchased a "Smart" charger from Electrify Bike who I found to be most reasonable on pricing and shipping. So for short trips I can charge to 80% or 90% and for longer ones I can fully charge to get maximum range.

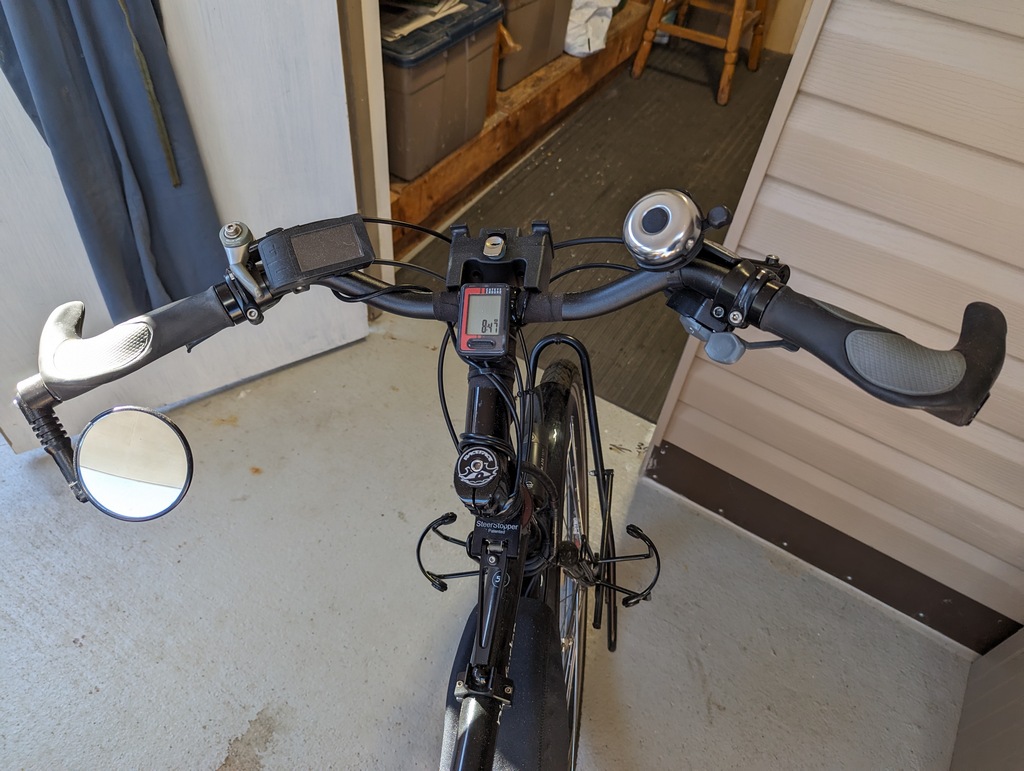

 Besides the charger, the only other new item is a new handlebar and component setup for the bike. Very comfortable!
I really liked these swept-back bars and ended up installing one on my other recreational bike too! I also changed out the front derailleur shifter to a top mount friction shifter for a more positive shift between the two front chainrings.



I have a slightly longer trip planned, so will write at a later date with some
information on how the battery range performs with some higher mileage days...



 A few weeks after writing the above, I set off for a week of cycle touring on Vancouver Island.

I decided on a tour from my home town of Sidney, BC to Comox, BC.

There is a report of this tour and how the e-bike & battery fared
on another page of this website at... Sidney to Comox to Sidney
